2013年最新型号： QNIX4200（一体）：Fe：0-3000um；
QNIX4200P分体：Fe:0-3000um
QNix4200涂层测厚仪一体化设计，只需调零，无需校准，使用极其简单。 QNix4200为磁性测厚仪，可以用来测量钢、铁等磁性基体上的涂层、镀层。操作简单，携带方便，精度高，为广大用户所喜爱。 产品优点： 只需调零，无需校准 |
|
技术参数 | |
|
磁性基体(Fe模式) |
QNix4200有此功能 |
|
测量范围 |
Fe:0-3000um |
|
显示精度 |
0.1um |
|
精度 |
0-50um:≤±1um
50-1000um:≤±1.5%读数
1000-3000um≤±3%读数 |
|
最小接触面 |
10×10mm |
|
最小曲率半径 |
凸面：3mm
凹面：25mm |
|
最小基体厚度 |
Fe:0.2mm/NFe:0.05mm |
|
温度补偿范围 |
0-60℃ |
|
显示 |
LCD液晶(带背光) |
|
探头 |
红宝石固定式 |
|
电源 |
2×1.5V干电池 |
|
尺寸 |
100×60×27mm |
|
重量 |
110g |

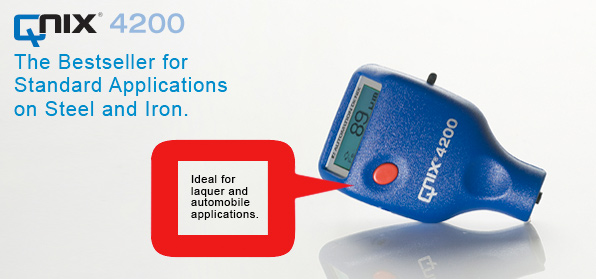

Handy and robust coating thickness gauge
QNix? 4200 was developed particularly for measuring tasks in the automobile industries. This compact gauge permits extremely precise measurements of lacquer and corrosion protection thicknesses, both on steel and iron.
With the practice-oriented product properties, professionals immediately recognize the handwriting of QNix gauges:
extremely precise:
high measuring accuracy on the entire measuring range
simple operation:
no calibration, one button, one-hand operation
innovative technology:
Hall-sensor and Eddy-current technology
broad spectrum of use:
measurements on steel and iron
protective measuring:
polished ruby tip
